ADVANCE A1 Gauges
Defi-Link Meter ADVANCE A1 is a series of gauges which need to be connected to ADVACE Control Unit
ADVANCE A1 is a series of premium models which contains a metallic tone dial plate with convex scales. It also provides a high visibility by using a low-reflection glass.
The numbers are not visible until the ignition is turned on.
- Gauge options include
- Boost 200kPa (DF14801) or 300kPa (DF14802) maximum pressure
- Oil presure (DF15001)
- Fuel pressure (DF15101)
- Oil temperature (DF15201)
- Water temperature (DF15301)
- Exhaust temperature (DF15401)

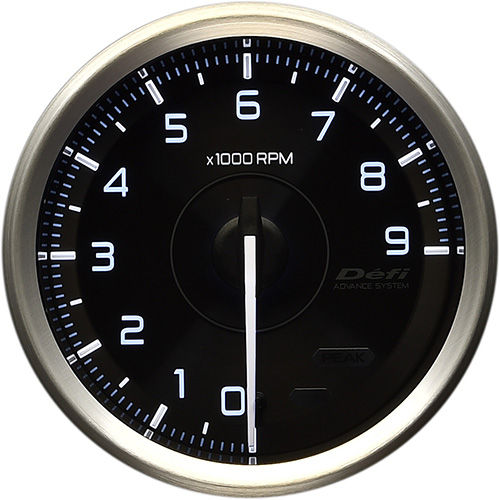

- Tachometer in 80 mm dia. 9000rpm (DF17601) and 11000rpm (DF15501)
- The scales and pointer are white while ignition is off. The numbers light up after the ignition is turned on
- Low-reflection glass provides a high visibility
- The metallic tone dial plate with concave scales and fine circular hairlines gives a premium texture
- One ADVANCE Control Unit operates up to 7 gauges or displays in total
**Standard courier charges apply within New Zealand**
***For ALL CUSTOMERS OUTSIDE OF NEW ZEALAND please ask us for freight charges***
ADVANCE System Connection
The Defi-Link ADVANCE system allows gauges and displays to be attached to the ADVANCE control unit with a single “DAISY CHAIN” wiring system.
The system is also designed to allow all sensors to be attached to the ADVANCE control unit, so that gauges and displays can be mounted separately without the need for multiple tubing or wiring to each gauge.
- One Control Unit can control up to 7 ADVANCE gauges & displays together (except DSDF).
- Different color gauges can be connected.
- The same variety of gauges cannot be connected. (Ex. Two turbo gauges cannot be connected.)
- More than 2 ADVANCE FD displays can be connected.
- Gauges & displays can be connected in any order.
- Smart Adapter and DSDF need to be connected to the end of the meter line because they have only one connector for meter wire.
